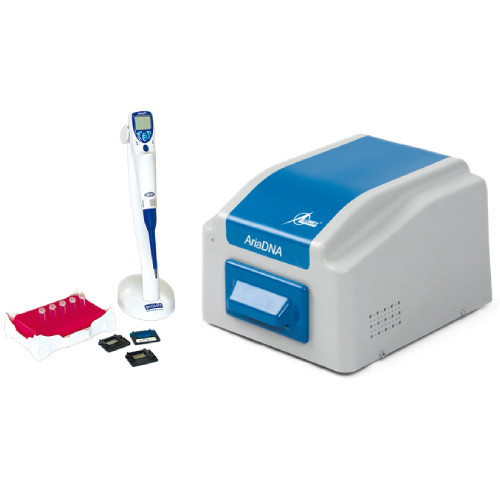

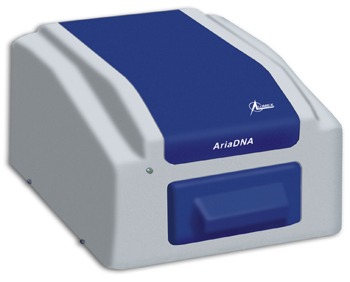

Real-Time PCR analyzer AriaDNA

Real-Time PCR analyzer AriaDNA

Polymerase chain reaction (PCR) is now often indispensable technique used in medical and biological research labs for a variety of applications including qualitative and quantitative nucleic acid analysis; DNA cloning for sequencing, DNA-based phylogeny, or functional analysis of genes; the diagnosis of hereditary diseases; the identification of genetic fingerprints (used in forensic sciences and paternity testing); and the detection and diagnosis of infectious diseases.
More about Real-time PCR analysis Share

Polymerase chain reaction (PCR) is now often indispensable technique used in medical and biological research labs for a variety of applications including qualitative and quantitative nucleic acid analysis; DNA cloning for sequencing, DNA-based phylogeny, or functional analysis of genes; the diagnosis of hereditary diseases; the identification of genetic fingerprints (used in forensic sciences and paternity testing); and the detection and diagnosis of infectious diseases.

FEATURES OF MICROCHIP PCR ANALYZER «AriaDNA»

  • PCR analysis time (45 cycles) – 20 minutes
    due to high thermocycling rate (10–12 °C/s);
  • Low sample and reagent consumption
    only 0.5–1.8 μl of 2x PCR master mix for 0.5–1.8 μl sample;
  • Low detection limits
    1–5 DNA/RNA copies per microreactor;
  • Microchips with ready-to-use immobilized PCR reagents;
    reduce user’s labor content;
  • Qualitative and quantitative DNA/RNA analysis
    simultaneously in 20–48 microreactors via 2 detector channels (FAM, SYBR Green / ROX);
  • Minimizing contamination
    PCR is performed in a microchip isolated from environment;
  • Real-time data monitoring
    current process settings (temperature, PCR cycle); analysis time; expected time to complete analysis; PCR curves parameters; plus/minus DNA analysis results;
  • User friendly graphical interface;
  • Automatic report generation;
  • CFR 21 Part 11 complaint;
  • Export results in industry standard data formats.
APPLICATION AREAS
  • Clinical and laboratory services for medical, veterinary and phytopathogen diagnostics;
  • Quality control services for food manufacturing, customs control and biological safety;
  • Virus and bacteria diagnostic centers;
  • STD diagnostics.

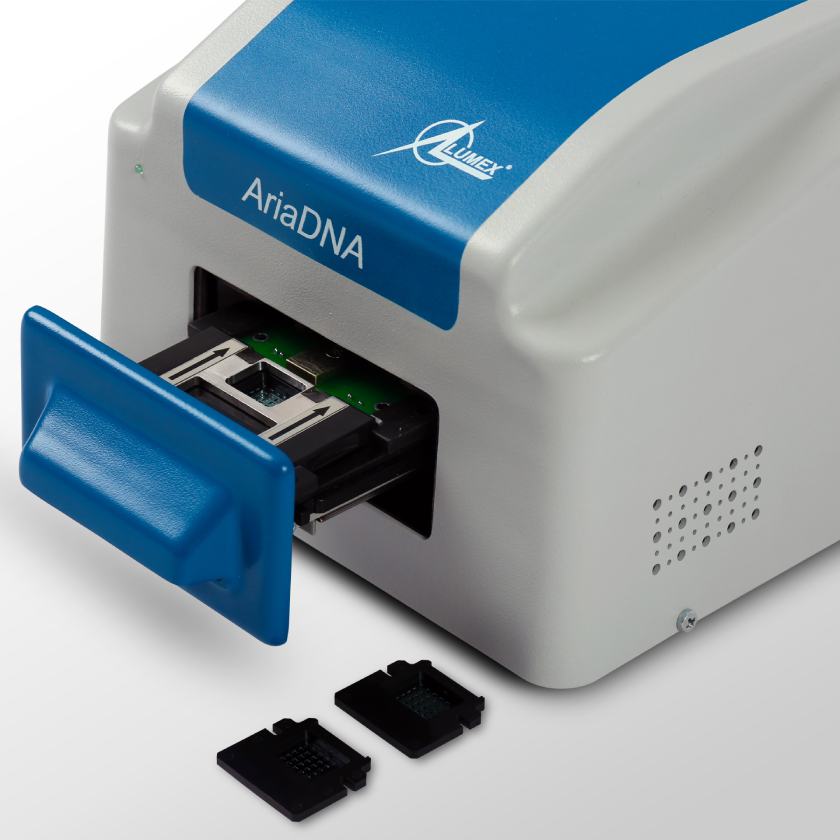

Microchip-based real-time PCR analyzer for rapid qualitative and quantitative analysis of nucleic acids in various samples.

Microchips for user-designed PCR reagents can be used with various reagents according to the user tasks. PCR mixtures of reagents and samples can be added into microreactors in the same way as in a test tube.

Microchips with lyophilized reagents for the detection and diagnosis of infectious diseases; functional analysis of genes; the diagnosis of hereditary diseases. Microchips with lyophilized PCR reagents can be transported and stored at ambient temperature up to 6 months.

Applications of microchips with lyophilized reagents designed by Lumex Instruments:

  • diagnostics of sexually transmitted infections in biological samples (RUO): Trichomonas vaginalis (TV), Candida albicans (Ca), Mycoplasma genitalium (MG), Mycoplasma hominis (MH), Chlamydia trachomatis (CT), Ureaplasma spp (Ur.spp), Neisseria gonorrhoeae (NG) and Herpes simplex virus I/II (HSV);
  • determination of SNP mutations in human genome (RUO) (polymorphisms in genes F2 [20210G/A], F5 [1691G/A], MTHFR [677C/T], [1298A/C], CYP2C9 (*2 and *3), VKORC1 [-1639G/A]);
  • determination of infectious diseases of cows caused by microorganisms (RUO): Chlamydophila pecorum, Chlamydophila abortus, Brucella spp., Ureaplasma diversum, Trichomonas foetus, Campylobacter fetus, Campylobacter jejuni, Listeria monocytogenes, Leptospira interrogans, Mycoplasma bovis, Mycoplasma mycoides;
  • determination of infectious diseases of chicken caused by viruses (RUO): Avian paramyxovirus (NDV), Coronavirus avia (IBV), Birna viridae (IBDV), Reoviridae (AORV);
  • determination of pathogens in raw and processed food (RUO): Salmonella spp. and Listeria monocytogenes.
*RUO – research use only.
Share
Rate of sample thermal cycling heating: 12 °C/s
cooling: 10 °C/s
Minimum DNA content in microreactor 1–5 DNA copies
Sample volume for a single analysis 0.5-1.8 μl
Total PCR analysis time (45 cycles) 20 minutes
Number of microreactors on a chip 20, 24, 30, 48
Reagents required per analysis (2-x PCR mixture) 0.5–1.8 μl
Microchips with immobilized reagents on request
Detection channel 1, dye FAM, SYBR-Green I
Detection channel 2, dye ROX
External PC control USB 2.0
Software designed for PCR analysis,
instrument setup and database maintenance
Included
Power requirements 90-240 VAC, 50/60 Hz
Power consumption 100 W
Size 250x300x190 mm
Weight 5 kg
