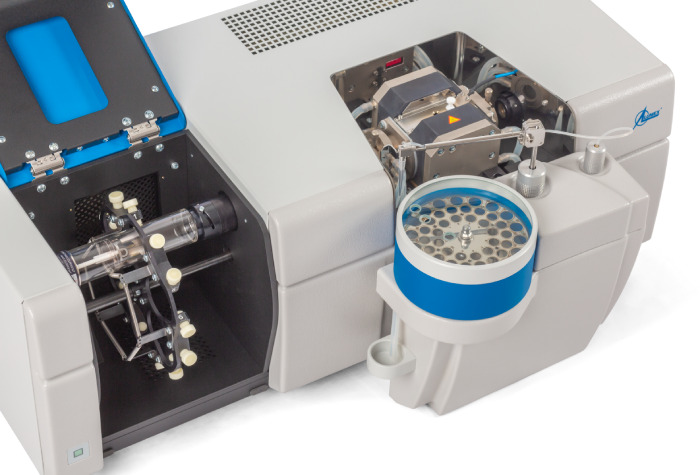

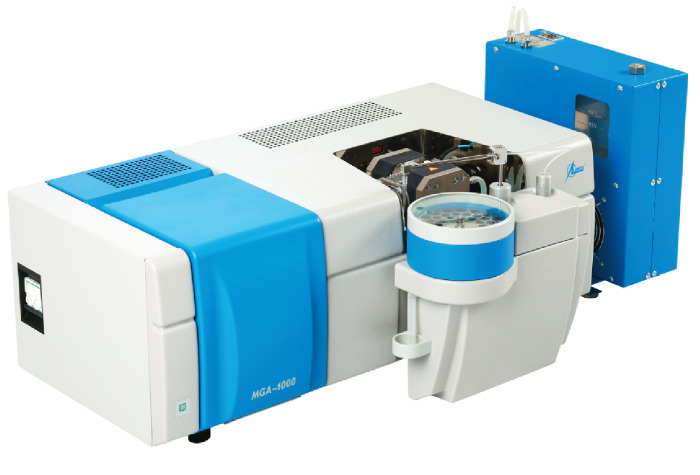

Atomic Absorption Spectrometer MGA-1000

Atomic Absorption Spectrometer MGA-1000

The MGA-1000 series of graphite furnace atomic absorption spectrometers crystallizes intuitive technology and exceptional handling. The unique High Frequency Zeeman background correction system ensures effective compensation of intense and rapidly changing spectral interferences and brings routine analysis of complex samples to new heights.
Share

The MGA-1000 series of graphite furnace atomic absorption spectrometers crystallizes intuitive technology and exceptional handling.
The unique High Frequency Zeeman background correction system ensures effective compensation of intense and rapidly changing spectral interferences and brings routine analysis of complex samples to new heights.

Key technologies

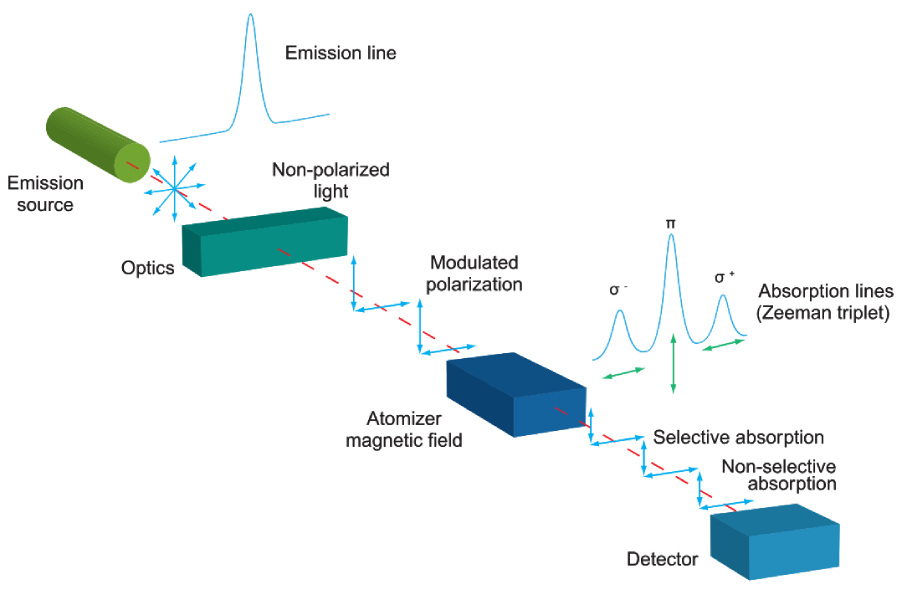

  • Zeeman High Frequency Polarization Modulation (ZHFPM) background correction
  • Simultaneous measurement of total and background absorptions provides accurate background correction even for complex sample matrices
  • High intensity electrodeless discharge lamps (EDL) ensure lower detection limits compared to traditional hollow cathode lamps (HCL) and make possible direct As and Se determination at ppb and sub-ppb levels without hydride generation technique

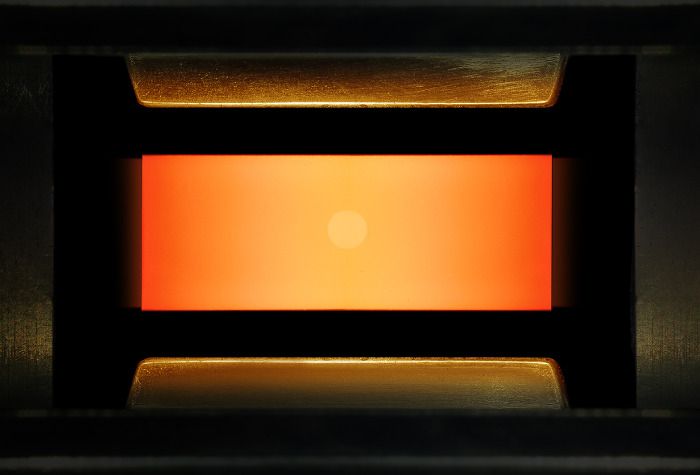

  • The stabilized temperature platform furnace (STPF) concept realized
  • Instrument drifts arising from various sources e.g. spectral lamps, electronics, are effectively compensated by quasi-double beam optical system. No warm-up needed
  • Cold Vapor / Hydride Generation technique available
  • Noiseless operation and small size

INDUSTRIES

Graphite furnace atomic absorption spectroscopy (GFAAS) is an excellent solution for trace element analysis in various fields:

  • Environmental monitoring
  • Water treatment
  • Food and Beverages
  • Agriculture
  • Pharmaceutics and Life science
  • Medicine and Biochemistry
  • Forensics and Clinical research
  • Petrochemistry and Refineries
  • Process control and Material analysis
  • Science and Research

For laboratories with low-moderate sample throughput, GFAAS secures optimal combination of high selectivity, sensitivity and low-cost analysis.

High analytical performance
  • Simple and direct analysis of samples with high salt and organic content including blood and biological fluids, sea water and brines, some food and soil digests, etc.
  • Lower detection limits for the elements for which EDLs are available. Thus Sb, As, Bi, Cd, Pb, P, Se, Te, Tl, Sn and Zn can be determined in variety of complex samples without pre-concentration and hydride generation technique
AUTOMATION & USABILITY
  • Plug & Measure convenience
  • User-friendly software for setting operating conditions, results storage and processing
  • PC controlled 6-lamp turret designed for main types of Hollow Cathode Lamps and Electrodeless Discharge Lamps
  • Smart autosampler with all routine functions
  • Safety self-control
Low cost analysis
  • Standard graphite tubes (28 mm) of both Massman and L’vov type are available
  • The autosampler accommodates standard plastic vials and Eppendorf®-type tubes
  • Prolonged tube lifetime

Service & support
  • Trainings and Seminars
  • Warranty and Post-warranty Service
  • Customized analytical procedures by request and Validation Support
  • Consumables supply
Share

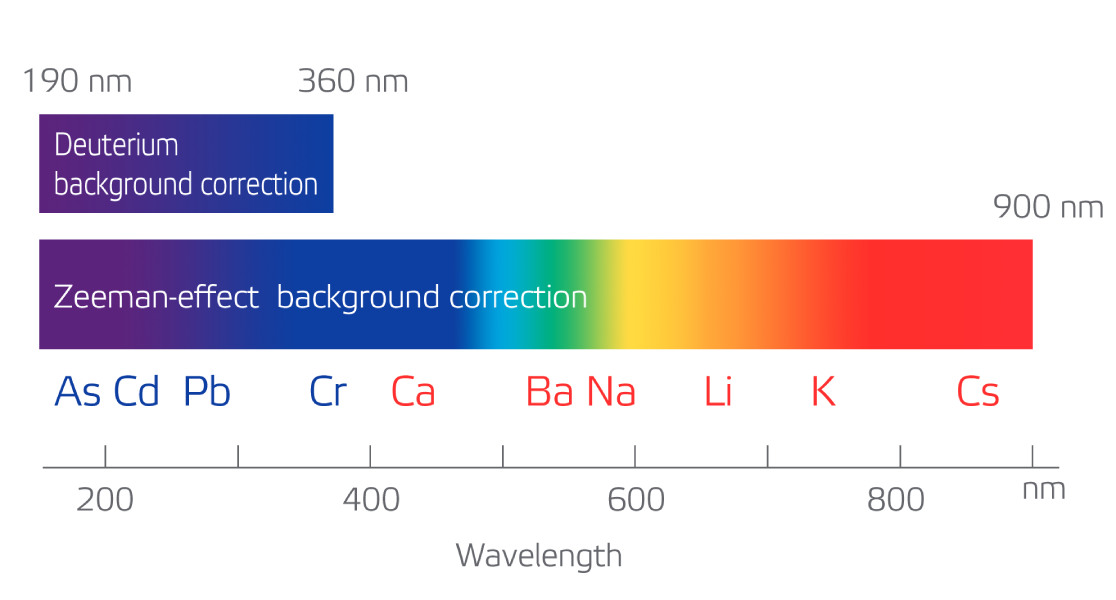

Spectral range 185 – 900 nm
Furnace heating rate up up to 4500 K/sec
Argon flow rate (high purity argon) < 1 l/min
Maximum temperature of the furnace atomizer 3000 °C
Tube lifetime 800 heating cycles
Size 800x475x310 mm
Weight 50 kg



DETECTION LIMITS
Element Wavelength, nm Absolute detection limit, pg Relative detection limit, µg/l
Ag 328.1 0.2 0.005
Al 309.3 1.5 0.038

As

194.0 4

0.1
0.0008*

Au 242.8 4 0.1
Ba 553.6 12 0.3
Be 234.9 0.4 0.01
Bi 306.8 16 0.4
Ca 442.0 0.4 0.01
Cd 228.8 0.01 0.00025
Co 240.7 6 0.15
Cr 357.9 0.4 0.01
Cu 324.7 1 0.025
Fe 248.3 2 0.05

Hg

253.7 10

0.25
0.002*

Li 670.8 2 0.05
Mg 285.2 0.2 0.005
Mn 279.5 1 0.025
Mo 313.3 4 0.1
Ni 232.0 4 0.1
Pb 283.3 2 0.05
Pd 244.8 4 0.1
Pt 265.9 30 0.75
Sb 231.2 4 0.1

Se

196.1 4

0.1
0.0008*

Sn 286.3 4 0.1
Sr 460.7 1.1 0.028
Ti 364.3 20 0.5
Tl 276.8 2 0.05
V 318.4 4 0.1
Zn

213.9
307.6

0.01
50

0.00025
1.25


* With RGP-915 hydride generation accessory.

ENVIRONMENT - List of standards (ISO, ASTM, EN, EPA, etc.) for MGA spectrometers
FOOD INDUSTRY - List of standards (ISO, EN, AOAC etc.) for MGA spectrometers
BEVERAGES - List of standards (ISO, ASTM, EN, EPA etc.) for MGA spectrometers
AGRICULTURE - List of standards (ISO, EN) for MGA spectrometers
ENERGY & CHEMICALS - List of standards (ISO, ASTM, EN etc.) for MGA spectrometers
PHARMA INDUSTRY - List of general chapters and monographs (Ph. Eur., USP, JP etc.) for MGA spectrometers
CLINICAL RESEARCH - List of standard methods for MGA spectrometers
METALLYRGY, MINING & OTHER INDUSTRIES - List of standards (ISO, ASTM, EN, AOAC) for MGA spectrometers



Title Product
ISO 5961:1994 / Water quality – Determination of cadmium by atomic absorption spectrometry

MGA-1000

MGA-915MD

EPA Method 0060 / Determination of metals in stack emissions

MGA-1000

MGA-915MD

ASTM D6357-11 / Standard test methods for determination of trace elements in coal, coke, and combustion residues from coal utilization processes by inductively coupled plasma atomic emission spectrometry, inductively coupled plasma mass spectrometry, and graphite furnace atomic absorption spectrometry

MGA-1000

MGA-915MD
