Capillary electrophoresis system Capel 105M price

Capillary electrophoresis system Capel 105M

Capel-105M is a high performance capillary electrophoresis system for fast and effective solutions in food industry, environmental applications, pharmaceutical and chemical industries, biochemistry and forensic science. Lumex Instruments 79
Capel-105M - by
5/ 5stars
Capel-105M is an advanced capillary zone electrophoresis system for food industry, environmental applications, pharmaceutical and chemical industries, biochemistry, and forensic science
More about capillary electrophoresis

CAPEL-105M is a capillary electrophoresis system for fast and effective solutions for food industry, environmental applications, pharmaceutical and chemical industries, biochemistry and forensic science.

principle of operation

High performance capillary electrophoresis is based on the differential migration of components of aqueous samples within a narrow fused silica capillary driven by an electric field. Separated solutes are quantitatively detected at the capillary outlet by a high sensitive optical system based on direct or indirect UV absorbance.

features and benefits
Extended instrumental options
  • Spectra scanning facilitates peak identification
  • Broad range of controlled injection pressure allows analysis of viscous samples
  • Reverse sample injection under vacuum: ultra-short analysis time (less than 1 min) and sample stacking to decrease detection limit
Precise and highly effective capillary thermostating provided by circulating liquid coolant (water)(± 0.1 C)
  • Extended range of applied buffers and increased efficiency in separation
Powerful software package "Elforun"
  • Increased flexibility in performing analyses of various complexity
  • Any kind of complex runs are possible including those with pre-programming of changes in analysis conditions
  • Customized report, data export to other programs
Unique design of the capillary cassettes
  • Easy capillary change in just a few minutes
  • Lower Detection Limit due to the optimized optical scheme
Analytical characteristics

Detectors
CAPEL-105M is equipped with a spectrophotometric detector  with a wavelength range of 190 - 400 nm.

Light source
Deuterium lamp

Vials
Standard Eppendorf-type 1.5 ml, minimal sample volume 100 µl.

Injection modes
Sample injections by pressure, vacuum or electrokinetically.
Controlled pressure profile of injection with pressure values from – 99 mbar to + 99 mbar.
Electrokinetic injection at (+/-) 1 – 25 kV considering time for voltage ramping.
Programmable injection time / pressure / voltage.

Analysis
With a Voltage from -25 kV to +25 kV with a 1 kV step and an electronic polarity switch.
Current from 0 to 200 µA.

Elforun software features

  • Combination of instrument controlling, data acquisition and data processing;
  • Real time electropherogram visualization;
  • Electropherogram data processing with overlay mode and basic mathematical operations;
  • Computation of electrophoresis system parameters;
  • Customized report output (hard copy and file), data exchanges with worksheets, databases and word processors;
  • Extensive data processing algorithm customization;
  • GLP and GALP compliance.
equipment and options
  • Capillary electrophoresis system CAPEL-105M;
  • Spare capillary cassettes;
  • Elforun software package;
  • Kits for analyses (by request); most of CE-kits of any manufacturers are compatible with Capel-105M.
Warranty

All Lumex instruments and equipment are covered by a 12-months warranty.

services

Installation of LUMEX instruments can be carried out at a Customer's site by our service engineers. Personnel training specific to the Customer needs can be also provided.

Detector Spectrophotometer
190-400 nm
Analysis Constant voltage (+/-) 1 - 25 kV in 1 kV steps
Automatic (electronic) polarity switch
Current 0 - 200 µA
Pressure (+/-) 1-99 mbar
Programmable changing of wavelength, pressure and voltage during analysis
Injection By voltage
By pressure
By vacuum
Sampler Autosamplers for 10 inlet and 10 outlet vials
Rinsing With pressure ~1000 or 2000 mbar
Capillary Length: 30-100 cm
Internal diameter: 50, 75, 100 μm
Capillary thermostating Liquid thermostating conducted at temperatures from 10 ºC below to 30ºC above ambient temperature (± 0.1 C)
Controlled parameters Wavelength
Pressure
Temperature
Voltage
Power requirements 110/220 Vac, 50/60 Hz
Power consumption 200 W
Size, mm 420х570х360
Weight, kg 25
areas of application
  • Environmental analysis: water and soil quality monitoring (cations, anions, herbicides, pesticides);
  • Food industry: analysis of beverages and juices (cations, anions, vitamins, organic acids, preservatives, antioxidants, dyes, sweeteners); mineral water (cations, anions); wines and brandies (cations, organic acids, polyphenols, aldehydes, sulfite); beer (inorganic cations and anions, hop and bitter acids, sulfite, amino acids, organic acids, vitamins); milk (proteins, antibiotics); tea, coffee (caffeine, polyphenols); foodstuff (amino acids, synthetic dyes, organic acids, amines, proteins, melamine);
  • Agriculture: grain and grain products (amino acids), mixed fodders (cations, amino acids, amines, vitamins);
  • Chemical industry: technological monitoring, analysis of raw material;
  • Pharmaceutical industry: patent medicines analysis, technological monitoring, and enantiomers separation;
  • Biochemistry: analysis of proteins by capillary isoelectric focusing technique, pharmacokinetics studies;
  • Forensic studies: analysis of explosives and trace detection, drugs analysis, analysis of writing paper components.
Application Product
Determination of inorganic anions, cations, and organic acids in fermentation liquids Determination of inorganic anions, cations, and organic acids in fermentation liquids

Capel-105M

Capel-205

Determination of anions in beverage Determination of anions in beverage

Capel-105M

Capel-205

Determination of caffeine and theobromine in tea, coffee, cocoa, and dietary supplements Determination of caffeine and theobromine in tea, coffee, cocoa, and dietary supplements

Capel-105M

Capel-205

Determination of caffeine, ascorbic acid, preservatives (benzoic acid, sorbic acid and their salts), and artificial sweeteners (acesulfame K, saccharine) in soft and strong drinks Determination of caffeine, ascorbic acid, preservatives (benzoic acid, sorbic acid and their salts), and artificial sweeteners (acesulfame K, saccharine) in soft and strong drinks

Capel-105M

Capel-205

Determination of inorganic anions in aqueous matrices according to EPA 6500 and ASTM D6508-10 test methods Determination of inorganic anions in aqueous matrices according to EPA 6500 and ASTM D6508-10 test methods

Capel-105M

Capel-205

Determination of inorganic anions in water samples Determination of inorganic anions in water samples

Capel-105M

Capel-205

Erythropoietin concentrated solution. Determination of isoforms according to Ph. Eur. 1316 Erythropoietin concentrated solution. Determination of isoforms according to Ph. Eur. 1316

Capel-105M

Capel-205

Determination of fructose, glucose, and saccharose in beverages, fruit and vegetable products, honey, dietary supplements Determination of fructose, glucose, and saccharose in beverages, fruit and vegetable products, honey, dietary supplements

Capel-105M

Capel-205

Aprotinin and aprotinin concentrated solution. Determination of impurities according to Ph. Eur. 0579, 0580 Aprotinin and aprotinin concentrated solution. Determination of impurities according to Ph. Eur. 0579, 0580

Capel-105M

Capel-205

Determination of proteins concentrations and their molecular weights Determination of proteins concentrations and their molecular weights

Capel-105M

Capel-205

Determination of protein purity and heterogeneity with capillary gel electrophoresis and capillary isoelectric focusing Determination of protein purity and heterogeneity with capillary gel electrophoresis and capillary isoelectric focusing

Capel-105M

Capel-205

Determination of macronutrients in fertilizers Determination of macronutrients in fertilizers

Capel-105M

Capel-205

Determination of organic acids in beverages Determination of organic acids in beverages

Capel-105M

Capel-205

Determination of inorganic cations in water samples Determination of inorganic cations in water samples

Capel-105M

Capel-205

Determination of proteinogenous amino acids in feedstuffs, compound feeds, and feed raw materials Determination of proteinogenous amino acids in feedstuffs, compound feeds, and feed raw materials

Capel-105M

Capel-205

Determination of lysine and its salts in fodder additives Determination of lysine and its salts in fodder additives

Capel-105M

Capel-205

Determination of choline (vitamin B4) in feedstuffs, compound feeds, fodder additives, and feed raw materials Determination of choline (vitamin B4) in feedstuffs, compound feeds, fodder additives, and feed raw materials

Capel-105M

Capel-205

Determination of cations in feedstuffs, compound feeds, and feed raw materials Determination of cations in feedstuffs, compound feeds, and feed raw materials

Capel-105M

Capel-205

Determination of methionine hydroxy analogue in fodder additives Determination of methionine hydroxy analogue in fodder additives

Capel-105M

Capel-205

Determination of 4-carboxybenzaldehyde & p-toluic acid in purified terephthalic acid according to ASTM D7881 & ASTM D7882 test methods Determination of 4-carboxybenzaldehyde & p-toluic acid in purified terephthalic acid according to ASTM D7881 & ASTM D7882 test methods

Capel-105M

Capel-205

Determination of synthetic amino acids (methionine, threonine, tryptophan) in fodder additives Determination of synthetic amino acids (methionine, threonine, tryptophan) in fodder additives

Capel-105M

Capel-205

Determination of organic acids in feedstuffs and fodder additives Determination of organic acids in feedstuffs and fodder additives

Capel-105M

Capel-205

Determination of ascorbic acid and its salts in food additives and fodder additives Determination of ascorbic acid and its salts in food additives and fodder additives

Capel-105M

Capel-205

Determination of anions in feedstuffs, compound feeds, and feed raw materials Determination of anions in feedstuffs, compound feeds, and feed raw materials

Capel-105M

Capel-205

Determination of preservatives (benzoic, sorbic acids, and their salts) and sweeteners (acesulfame K, saccharine, and its salts) in food products and raw materials, and dietary supplements Determination of preservatives (benzoic, sorbic acids, and their salts) and sweeteners (acesulfame K, saccharine, and its salts) in food products and raw materials, and dietary supplements

Capel-105M

Capel-205

Determination of acetic acid (acetate anions) in natural, drinking, and waste water Determination of acetic acid (acetate anions) in natural, drinking, and waste water

Capel-105M

Capel-205

Determination of water-soluble forms of inorganic cations in soils, clays, peat, wastewater silt, activated sludge, and bottom sediments Determination of water-soluble forms of inorganic cations in soils, clays, peat, wastewater silt, activated sludge, and bottom sediments

Capel-105M

Capel-205

Determination of bromide and iodide anions in water samples Determination of bromide and iodide anions in water samples

Capel-105M

Capel-205

Determination of chlorate, perchlorate, and chlorite ions in drinking water including bottled water Determination of chlorate, perchlorate, and chlorite ions in drinking water including bottled water

Capel-105M

Capel-205

Determination of water-soluble forms of inorganic and organic anions in soils, clays, peat, wastewater silt, activated sludge, and bottom sediments Determination of water-soluble forms of inorganic and organic anions in soils, clays, peat, wastewater silt, activated sludge, and bottom sediments

Capel-105M

Capel-205

Determination of serum protein fractions Determination of serum protein fractions

Capel-105M

Capel-205

Identification and determination of synthetic dyes in soft and alcoholic drinks Identification and determination of synthetic dyes in soft and alcoholic drinks

Capel-105M

Capel-205

Determination of vanillin, sinapic, coniferyl, and syringic aldehydes in brandies and brandy spirits Determination of vanillin, sinapic, coniferyl, and syringic aldehydes in brandies and brandy spirits

Capel-105M

Capel-205

Determination of albumin concentration in urine Determination of albumin concentration in urine

Capel-105M

Capel-205

Determination of phenoxycarboxylic acid herbicides in water Determination of phenoxycarboxylic acid herbicides in water

Capel-105M

Capel-205

Determination of inorganic cations in drinks Determination of inorganic cations in drinks

Capel-105M

Capel-205

Determination of total sulfur dioxide in wine and beer Determination of total sulfur dioxide in wine and beer

Capel-105M

Capel-205

Determination of D- and L-isomers of tartaric and malic acids in wines, wine materials, and food additives Determination of D- and L-isomers of tartaric and malic acids in wines, wine materials, and food additives

Capel-105M

Capel-205

Determination of organic acids in feedstuff, silage, haylage, and fermentates for biogas plants Determination of organic acids in feedstuff, silage, haylage, and fermentates for biogas plants

Capel-105M

Capel-205

Determination of organic acids and some preservatives in wine and spirits Determination of organic acids and some preservatives in wine and spirits

Capel-105M

Capel-205

Determination of hesperidin and naringin in juices Determination of hesperidin and naringin in juices

Capel-105M

Capel-205

Determination of the carbendazim content in orange and other citrus juice produce Determination of the carbendazim content in orange and other citrus juice produce

Capel-105M

Capel-205

Determination of whey proteins in milk samples by capillary gel electrophoresis Determination of whey proteins in milk samples by capillary gel electrophoresis

Capel-105M

Capel-205

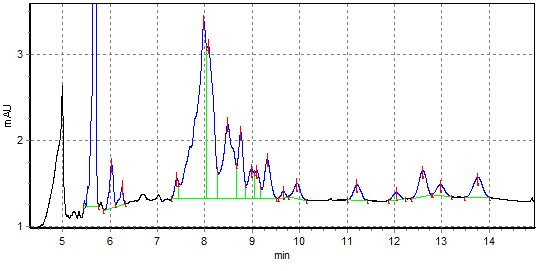

CE systems Capel analyze and characterize Sicilian wheat landraces

CE systems Capel analyze and characterize Sicilian wheat landraces

Research Centre for Cereal and Industrial Crops, CREA
Italy

The global task of CREA research centers was to characterize all Sicilian wheat landraces (more than 52 varieties) and to compose a kind of database, also relating the obtained protein profiles to other properties of the wheat and its corresponding dough.
Lumex Instruments suggested using capillary gel electrophoresis (CGE) technique. Protein resolution and sensitivity are definitely superior to the classical SDS-PAGE analysis, while the highest degree of automatization of the whole analysis makes CGE much less laborious.

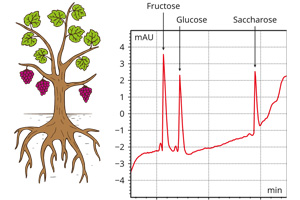

Distribution of soluble carbohydrates in grapevine tissues depending on the life cycle

Instituto de Biologia Agricola de Mendoza
Argentina

The distribution of soluble carbohydrates affects fruit yield and quality and depends on plant physiology. Thus, sugar analysis in plants is important throughout the entire growth process.
Lumex Instruments offered the Institute of Agricultural Biology of Mendoza the Capillary Electrophoresis method for determination of sugars in different tissues and phenology, with minimal sample preparation.

Capillary electrophoresis introduced to the analysis of wine and spirits

LEC (Laboratoire Expertises et Conseils) laboratory
France

One of the leading spirit production control companies in France, LEC successfully uses capillary electrophoresis (CE) for the determination of various compounds in wine and spirits, such as organic acids, inorganic cations, and sugars with CE system Capel-105M, and managed to replace some conventional techniques.
