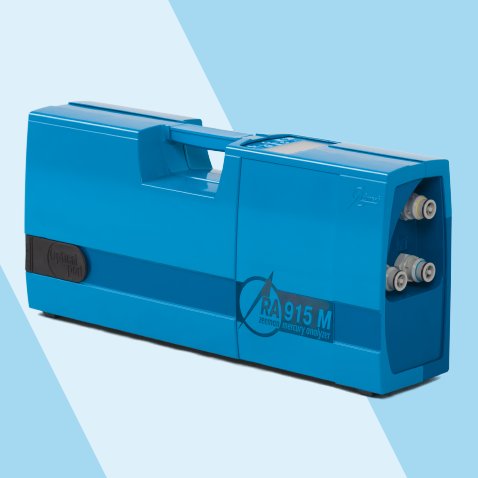

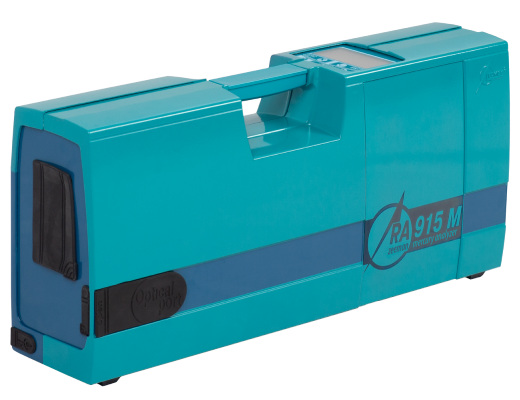

Mercury Analyzer RA-915M

Mercury Analyzer RA-915M

Mercury Analyzer is a portable multifunctional atomic absorption spectrometer with Zeeman background correction, which eliminates the effect of interfering impurities. It is the only high sensitivity and selectivity instrument that does not require gold amalgam pre-concentration and subsequent regeneration steps. This enables the user to conduct real time air monitoring and detection of a mercury vapor. Being combined with pyrolysis or cold vapour attachments for liquid and solid sample testing, the instrument can determine mercury content in water, soil, food products, natural and stack gases, may be used for dental and toxicological applications, etc.
Share

The mercury analyzer RA-915M is a unique all-purpose high sensitivity analytical instrument for measuring mercury, especially for the real time detection of mercury vapor in air, mercury detection in water, natural and stack gases, oil and condensate, solid and sediments, foodstuff and so on.

RA-915M Mercury Analyzer is a portable multifunctional atomic absorption spectrometer with Zeeman background correction, which eliminates the effect of interfering impurities. It is the only high sensitivity and selectivity instrument that does not require gold amalgam pre-concentration and subsequent regeneration steps. This enables the user to conduct real time monitoring and detection of a mercury vapor. Being combined with an RP-92 Cold Vapor accessory for water and PYRO-915+ pyrolysis attachment for solid sample testing, the instrument is designed to determine mercury content in ambient air, water, soil, natural and stack gases, dental and medical testing and diagnostics, analysis of food and marine life, etc., the mercury detection limits being as low as 0.5 ng/m3 in air and 0.5 ng/l in water.

Analytical characteristics

Matrix Detection limit Sampling Analysis technique
Ambient air 0.5 ng/m3 10 l/min Direct
Natural gas 2-500 ng/m3 1-10 l/min Direct with gas kit
Water 0.5 ng/l 1-20 ml Cold vapor
Urine 0.2 µg/l 1-5 ml Cold vapor
Solid samples (soils, rocks, sediments) 0.5 µg/kg 10-300 mg Cold vapor
Sorbent traps for stack gases 0.5 ng*   Pyrolysis
Solid samples (solids, rocks, sediments) 0.5 µg/kg 10-400 mg Pyrolysis
Water and solutions 1 µg/l 10-200 µl Pyrolysis
Coal 1 µg/kg 10-300 mg Pyrolysis
Biological samples (tissues, liver, blood, hair, etc.) 1-5 µg/kg 10-300 mg Pyrolysis
Oil and oil products 1-5 µg/kg 10-200 mg Pyrolysis
Plants 0.5-5 µg/kg 10-400 mg Pyrolysis
Foodstuff 0.5-3 µg/kg 10-400 mg Pyrolysis

* range 0.5 - 50,000 ng

principle of operation

Atomic absorption spectrometry at 254 nm with Zeeman correction for background absorption for interference-free measurement.

features and benefits
  • simple to operate, fully automated, self validating analyzer;
  • rugged/Versatile design for laboratory and field mobile conditions;
  • ultra low detection limit and highest selectivity;
  • real-time operation mode for air and gases;
  • direct determination of mercury in liquid and solid matrices within 60 seconds (attachment required). No sample preparation, no use of hazardous chemicals or bottled gases ;
  • built-in performance verification test cell and auto zero function;
  • wide dynamic measuring range (four orders of magnitude);
  • controlled by a keypad or a computer via USB interface;
  • data logger for 122 hrs of data acquisition, averaging, and storage;
  • rechargeable battery for up to 12 hours operation.

options

Analyzer can be used in combination with solid and liquid matrix analysis attachments:

  • RP-92 attachment for liquid sample analysis (Cold vapor method);
  • PYRO-915+ attachment for liquid and solid samples analysis (Thermal decomposition method without sample pre-treatment) and sorbent trap analysis (US EPA Method 30B).
warranty

RA-915M analyzer and attachments are covered by 12-months limited warranty.

delivery set

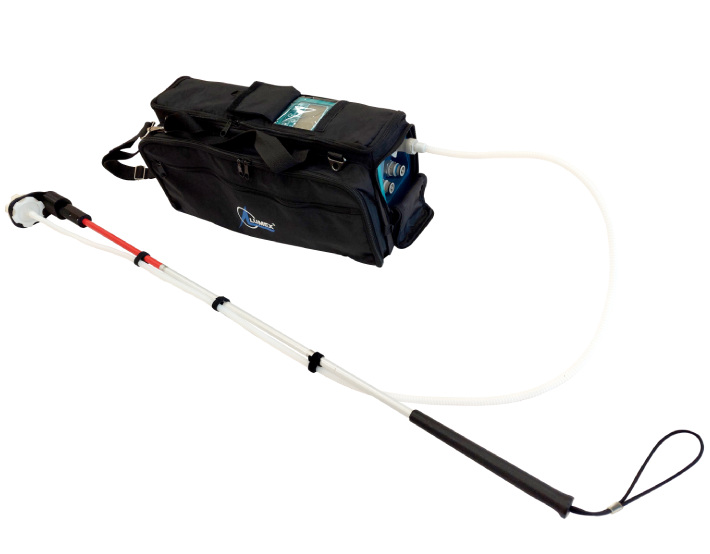

RA-915M portable Zeeman mercury analyzer comes with the RAPID software, charger, shoulder bag, intake hose/filter, mercury filter, cables, manuals.

services

Upon request, installation and commissioning of RA-915M analyzer and attachments can be carried out at customer's site by our service engineers. Support and training of operators, meeting Customer's specific needs, are provided by highly qualified application engineers.

Share
Dimensions 460x220x110 mm
Weight

7 kg

Power supply - 220/110 VAC, 50/60 Hz
- Built-in battery
Power consumption Max. 50 W
Analysis time

Direct on-line

areas of application

The RA-915M portable mercury analyzer system enables coping with any complex problems involving mercury detection in natural media and in technological process monitoring.

Demercurization monitoring:

  • search and localization of indoor and outdoor mercury contamination in continuous air analysis mode, including those performed from moving vehicles;
  • monitoring of a demercurization process involving any chemical reagents;
  • quality assurance of the demercurization;
  • mercury assaying in construction materials and surface wash-outs.

Handling the toxicology and occupational safety problems:

  • proximate analysis of biological objects (urine, blood, hair, and exhaled air) finding out risk groups;
  • screening examination of population;
  • finding out risk groups;
  • instrumental monitoring of a mercury intoxication treatment and of the following rehabilitation.

Rapid-analysis of complex objects:

  • combustible deposits (hydrocarbon gases, natural gas condensate, oil, coal, peat, and shale oil;
  • raw materials and industrial products;
  • ecological and geochemical samples, biological objects, foodstuffs, cosmetics, and medical preparations.

Geological and geochemical survey:

  • study of mercury cycles of natural and technological origin;
  • prospecting of mineral deposits;
  • Mercury assaying in natural gases, water, rocks and ores.

Ecological survey:

  • continuous background mercury vapor monitoring in the atmosphere;
  • various ecological surveys of mercury haloes of technological origin and detection of emission sources.
Application Product
Determination of the mercury concentration in naphtha Determination of the mercury concentration in naphtha

RA-915M / PYRO-915+

Direct atomic absorption mercury determination in oil and oil products Direct atomic absorption mercury determination in oil and oil products

RA-915M / PYRO-915+

Determination of mercury in soil, bottom sediments, and geological materials Determination of mercury in soil, bottom sediments, and geological materials

RA-915M / PYRO-915+

Direct AA Mercury determination in cosmetics Direct AA Mercury determination in cosmetics

RA-915M / PYRO-915+

Rapid analysis of total mercury in waste waters and process waters with elevated mercury content using direct pyrolysis technique Rapid analysis of total mercury in waste waters and process waters with elevated mercury content using direct pyrolysis technique

RA-915M / PYRO-915+

Direct atomic absorption mercury determination in foodstuff and mixed feed Direct atomic absorption mercury determination in foodstuff and mixed feed

RA-915M / PYRO-915+

Direct atomic absorption mercury determination in tissues and biological samples Direct atomic absorption mercury determination in tissues and biological samples

RA-915M / PYRO-915+

Determination of total mercury content in blood by cvaas Determination of total mercury content in blood by cvaas

RA-915M

Mercury determination in natural, surface, sea, drinking, bottled, mineral, and waste water by cvaas Mercury determination in natural, surface, sea, drinking, bottled, mineral, and waste water by cvaas

RA-915M / RP-92

Determination of a total mercury content in urine Determination of a total mercury content in urine

RA-915M / RP-92

Mercury determination in natural gas Mercury determination in natural gas

RA-915M

Direct determination of mercury content in ambient air Direct determination of mercury content in ambient air

RA-915M

Direct mercury determination in coal Direct mercury determination in coal

RA-915M / PYRO-915+

Determination of the total mercury in a filtrate of wash-off samples from contaminated surfaces Determination of the total mercury in a filtrate of wash-off samples from contaminated surfaces

RA-915M / RP-92

Determination of mercury in mercury-containing wastes Determination of mercury in mercury-containing wastes

RA-915M / RP-92
